Docker镜像构建原理解析(不装docker也能构建镜像)(镜像构建)

在devops流程里面构建镜像是一个非常重要的过程，一般构建镜像是写dockerfile文件然后通过docker client来构建的image。

docker client 会先检查本地有没有image，如果没有帮你从镜像仓库 pull 下来

然后解析你写的dockerfile构建新的image。

本文带你了解

pull 命令背后是怎么做的？
build 命令背后是怎么做的？

下篇文章带你解析：

如果我不用docker 我如何构建一个镜像？

我们以微软的aspnet2.2为基础构建一个aspnetcore项目的镜像为例子

mcr.microsoft.com/dotnet/core/aspnet:2.2

根据基础镜像REGISTRY去获取mainfest信息

https://mcr.microsoft.com/v2/dotnet/core/aspnet/manifests/2.2
Accept:
application/vnd.oci.image.manifest.v1+json,application/vnd.docker.distribution.manifest.v2+json,application/vnd.docker.distribution.manifest.v1+json

获取到的内容如下：

{
  "schemaVersion": 2,
  "mediaType": "application/vnd.docker.distribution.manifest.v2+json",
  "config": {
    "mediaType": "application/vnd.docker.container.image.v1+json",
    "size": 4039,
    "digest": "sha256:e7e3b238011ce0f2b9350153535fe273caa01f0e7188d0b91f965b3802ddc600"
  },
  "layers": [
    {
      "mediaType": "application/vnd.docker.image.rootfs.diff.tar.gzip",
      "size": 22524609,
      "digest": "sha256:804555ee037604c40de144f9f8da0d826d38db82f15d74cded32790fe279a8f6"
    },
    {
      "mediaType": "application/vnd.docker.image.rootfs.diff.tar.gzip",
      "size": 17692725,
      "digest": "sha256:970251047358aea56ba6db6975b14ff12470b75de0c2477f4445240ddd727fd4"
    },
    {
      "mediaType": "application/vnd.docker.image.rootfs.diff.tar.gzip",
      "size": 2978257,
      "digest": "sha256:f3d4c41a4fd13f35c0b46f19a4e27845f4695163cc7174d908ff84836bbc2f5a"
    },
    {
      "mediaType": "application/vnd.docker.image.rootfs.diff.tar.gzip",
      "size": 62145592,
      "digest": "sha256:bd391c46585f9f8d84992bbaa9087189148c1601968eaaf097d5b3ed60840e5e"
    }
  ]
}

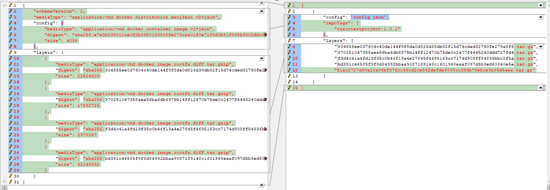

mainfest文件里面都是摘要(digest)记录

config信息摘要
每个layer的摘要（上面的例子有4个）

根据上面的config信息摘要获取config详情

GET:https://mcr.microsoft.com/v2/dotnet/core/aspnet/blobs/sha256:e7e3b238011ce0f2b9350153535fe273caa01f0e7188d0b91f965b3802ddc600

{
  "architecture": "amd64",
  "config": {
    "Hostname": "",
    "Domainname": "",
    "User": "",
    "AttachStdin": false,
    "AttachStdout": false,
    "AttachStderr": false,
    "Tty": false,
    "OpenStdin": false,
    "StdinOnce": false,
    "Env": [
      "PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin",
      "ASPNETCORE_URLS=http://+:80",
      "DOTNET_RUNNING_IN_CONTAINER=true",
      "ASPNETCORE_VERSION=2.2.8"
    ],
    "Cmd": [
      "bash"
    ],
    "ArgsEscaped": true,
    "Image": "sha256:5ecfe4016ac8e911a94aa601a675f7204e9ccab00cbb08e7067c184ad40f34e9",
    "Volumes": null,
    "WorkingDir": "",
    "Entrypoi

根据diff_ids里面去下载对应layers

下载完后对比摘要一致，确保镜像文件合法性

路径规则：

https://mcr.microsoft.com/v2/dotnet/core/aspnet/blobs/sha256:XXXXXX
