Python机器学习之基于Pytorch实现猫狗分类(数据训练)

一、环境配置

安装Anaconda

具体安装过程，请点击本文

配置Pytorch

pip install -i https://pypi.tuna.tsinghua.edu.cn/simple torch
pip install -i https://pypi.tuna.tsinghua.edu.cn/simple torchvision

二、数据集的准备

1.数据集的下载

kaggle网站的数据集下载地址：
https://www.kaggle.com/lizhensheng/-2000

2.数据集的分类

将下载的数据集进行解压操作，然后进行分类

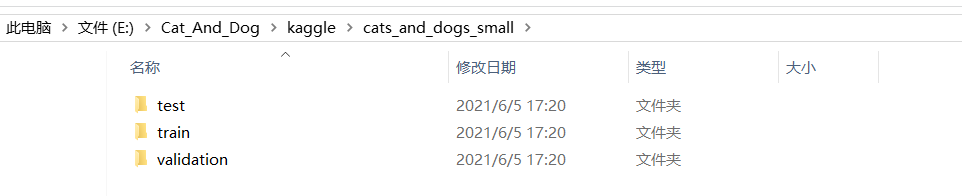

分类如下（每个文件夹下包括cats和dogs文件夹）

三、猫狗分类的实例

导入相应的库

# 导入库
import torch.nn.functional as F
import torch.optim as optim
import torch
import torch.nn as nn
import torch.nn.parallel

import torch.optim
import torch.utils.data
import torch.utils.data.distributed
import torchvision.transforms as transforms
import torchvision.datasets as datasets

设置超参数

# 设置超参数
#每次的个数
BATCH_SIZE = 20
#迭代次数
EPOCHS = 10
#采用cpu还是gpu进行计算
DEVICE = torch.device('cuda' if torch.cuda.is_available() else 'cpu')

图像处理与图像增强

# 数据预处理

transform = transforms.Compose([
 transforms.Resize(100),
 transforms.RandomVerticalFlip(),
 transforms.RandomCrop(50),
 transforms.RandomResizedCrop(150),
 transforms.ColorJitter(brightness=0.5, contrast=0.5, hue=0.5),
 transforms.ToTensor(),
 transforms.Normalize([0.5, 0.5, 0.5], [0.5, 0.5, 0.5])
])

读取数据集和导入数据

# 读取数据

dataset_train = datasets.ImageFolder('E:\\Cat_And_Dog\\kaggle\\cats_and_dogs_small\\train', transform)

print(dataset_train.imgs)

# 对应文件夹的label

print(dataset_train.class_to_idx)

dataset_test = datasets.ImageFolder('E:\\Cat_And_Dog\\kaggle\\cats_and_dogs_small\\validation', transform)

# 对应文件夹的label

print(dataset_test.class_to_idx)

# 导入数据

train_loader = torch.utils.data.DataLoader(dataset_train, batch_size=BATCH_SIZE, shuffle=True)

test_loader = torch.utils.data.DataLoader(dataset_test, batch_size=BATCH_SIZE, shuffle=True)

定义网络模型

# 定义网络
class ConvNet(nn.Module):
 def __init__(self):
  super(ConvNet, self).__init__()
  self.conv1 = nn.Conv2d(3, 32, 3)
  self.max_pool1 = nn.MaxPool2d(2)
  self.conv2 = nn.Conv2d(32, 64, 3)
  self.max_pool2 = nn.MaxPool2d(2)
  self.conv3 = nn.Conv2d(64, 64, 3)
  self.conv4 = nn.Conv2d(64, 64, 3)
  self.max_pool3 = nn.MaxPool2d(2)
  self.conv5 = nn.Conv2d(64, 128, 3)
  self.conv6 = nn.Conv2d(128, 128, 3)
  self.max_pool4 = nn.MaxPool2d(2)
  self.fc1 = nn.Linear(4608, 512)
  self.fc2 = nn.Linear(512, 1)

 def forward(self, x):
  in_size = x.size(0)
  x = self.conv1(x)
  x = F.relu(x)
  x = self.max_pool1(x)
  x = self.conv2(x)
  x = F.relu(x)
  x = self.max_pool2(x)
  x = self.conv3(x)
  x = F.relu(x)
  x = self.conv4(x)
  x = F.relu(x)
  x = self.max_pool3(x)
  x = self.conv5(x)
  x = F.relu(x)
  x = self.conv6(x)
  x = F.relu(x)
  x = self.max_pool4(x)
  # 展开
  x = x.view(in_size, -1)
  x = self.fc1(x)
  x = F.relu(x)
  x = self.fc2(x)
  x = torch.sigmoid(x)
  return x

modellr = 1e-4

# 实例化模型并且移动到GPU

model = ConvNet().to(DEVICE)

# 选择简单暴力的Adam优化器，学习率调低

optimizer = optim.Adam(model.parameters(), lr=modellr)

调整学习率

def adjust_learning_rate(optimizer, epoch):

 """Sets the learning rate to the initial LR decayed by 10 every 30 epochs"""
 modellrnew = modellr * (0.1 ** (epoch // 5))
 print("lr:",modellrnew)
 for param_group in optimizer.param_groups:
  param_group['lr'] = modellrnew

定义训练过程

# 定义训练过程
def train(model, device, train_loader, optimizer, epoch):

 model.train()
 for batch_idx, (data, target) in enumerate(train_loader):

  data, target = data.to(device), target.to(device).float().unsqueeze(1)

  optimizer.zero_grad()

  output = model(data)

  # print(output)

  loss = F.binary_cross_entropy(output, target)

  loss.backward()

  optimizer.step()

  if (batch_idx + 1) % 10 == 0:

print('Train Epoch: {} [{}/{} ({:.0f}%)]\tLoss: {:.6f}'.format(

 epoch, (batch_idx + 1) * len(data), len(train_loader.dataset),

  100. * (batch_idx + 1) / len(train_loader), loss.item()))
# 定义测试过程

def val(model, device, test_loader):

 model.eval()

 test_loss = 0

 correct = 0

 with torch.no_grad():

  for data, target in test_loader:

data, target = data.to(device), target.to(device).float().unsqueeze(1)

output = model(data)
# print(output)
test_loss += F.binary_cross_entropy(output, target, reduction='mean').item()
pred = torch.tensor([[1] if num[0] >= 0.5 else [0] for num in output]).to(device)
correct += pred.eq(target.long()).sum().item()

  print('\nTest set: Average loss: {:.4f}, Accuracy: {}/{} ({:.0f}%)\n'.format(
test_loss, correct, len(test_loader.dataset),
100. * correct / len(test_loader.dataset)))

定义保存模型和训练

# 训练
for epoch in range(1, EPOCHS + 1):

 adjust_learning_rate(optimizer, epoch)
 train(model, DEVICE, train_loader, optimizer, epoch)
 val(model, DEVICE, test_loader)

torch.save(model, 'E:\\Cat_And_Dog\\kaggle\\model.pth')

训练结果

四、实现分类预测测试

准备预测的图片进行测试

from __future__ import print_function, division
from PIL import Image

from torchvision import transforms
import torch.nn.functional as F

import torch
import torch.nn as nn
import torch.nn.parallel
# 定义网络
class ConvNet(nn.Module):
 def __init__(self):
  super(ConvNet, self).__init__()
  self.conv1 = nn.Conv2d(3, 32, 3)
  self.max_pool1 = nn.MaxPool2d(2)
  self.conv2 = nn.Conv2d(32, 64, 3)
  self.max_pool2 = nn.MaxPool2d(2)
  self.conv3 = nn.Conv2d(64, 64, 3)
  self.conv4 = nn.Conv2d(64, 64, 3)
  self.max_pool3 = nn.MaxPool2d(2)
  self.conv5 = nn.Conv2d(64, 128, 3)
  self.conv6 = nn.Conv2d(128, 128, 3)
  self.max_pool4 = nn.MaxPool2d(2)
  self.fc1 = nn.Linear(4608, 512)
  self.fc2 = nn.Linear(512, 1)

 def forward(self, x):
  in_size = x.size(0)
  x = self.conv1(x)
  x = F.relu(x)
  x = self.max_pool1(x)
  x = self.conv2(x)
  x = F.relu(x)
  x = self.max_pool2(x)
  x = self.conv3(x)
  x = F.relu(x)
  x = self.conv4(x)
  x = F.relu(x)
  x = self.max_pool3(x)
  x = self.conv5(x)
  x = F.relu(x)
  x = self.conv6(x)
  x = F.relu(x)
  x = self.max_pool4(x)
  # 展开
  x = x.view(in_size, -1)
  x = self.fc1(x)
  x = F.relu(x)
  x = self.fc2(x)
  x = torch.sigmoid(x)
  return x
# 模型存储路径
model_save_path = 'E:\\Cat_And_Dog\\kaggle\\model.pth'

# ------------------------ 加载数据 --------------------------- #
# Data augmentation and normalization for training
# Just normalization for validation
# 定义预训练变换
# 数据预处理
transform_test = transforms.Compose([
 transforms.Resize(100),
 transforms.RandomVerticalFlip(),
 transforms.RandomCrop(50),
 transforms.RandomResizedCrop(150),
 transforms.ColorJitter(brightness=0.5, contrast=0.5, hue=0.5),
 transforms.ToTensor(),
 transforms.Normalize([0.5, 0.5, 0.5], [0.5, 0.5, 0.5])
])


class_names = ['cat', 'dog']  # 这个顺序很重要，要和训练时候的类名顺序一致

device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")

# ------------------------ 载入模型并且训练 --------------------------- #
model = torch.load(model_save_path)
model.eval()
# print(model)

image_PIL = Image.open('E:\\Cat_And_Dog\\kaggle\\cats_and_dogs_small\\test\\cats\\cat.1500.jpg')
#
image_tensor = transform_test(image_PIL)
# 以下语句等效于 image_tensor = torch.unsqueeze(image_tensor, 0)
image_tensor.unsqueeze_(0)
# 没有这句话会报错
image_tensor = image_tensor.to(device)

out = model(image_tensor)
pred = torch.tensor([[1] if num[0] >= 0.5 else [0] for num in out]).to(device)
print(class_names[pred])

预测结果
