Python中OpenCV实现简单车牌字符切割

import cv2
import numpy as np
import matplotlib.pyplot as plt
from PIL import Image
#读取原图片
image1=cv2.imread("123456.jpg")
cv2.imshow("image1", image1)
#灰度化处理
image1_1=cv2.cvtColor(image1,cv2.COLOR_BGR2GRAY)
cv2.imshow("image1_1", image1_1)
#图像反色
h,w = image1_1.shape
image1_2=image1_1.copy()
for i in range(h):
 for j in range(w):
  image1_2[i,j] = 255-image1_2[i,j]
cv2.imshow('image1_2', image1_2)
#图像二值化
ret,image2 = cv2.threshold(image1_2, 100, 255, cv2.THRESH_BINARY)
cv2.imshow('image2', image2)
#水平投影
h1,w1=image2.shape #返回高和宽
image3=image2.copy()
a = [0 for z in range(0, h1)] #初始化一个长度为w的数组，用于记录每一行的黑点个数
#记录每一行的波峰
for j in range(0,h1):
 for i in range(0,w1):
  if  image3[j,i]==0:
a[j]+=1
image3[j,i]=255

for j in range(0,h1):
 for i in range(0,a[j]):
  image3[j,i]=0

plt.imshow(image3,cmap=plt.gray())#灰度图正确的表示方法
plt.show()
cv2.imshow('image3',image3)

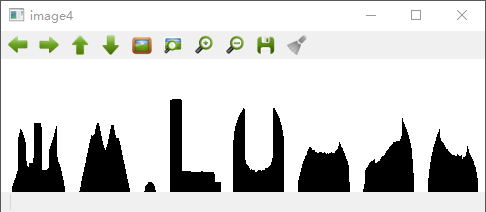

#垂直投影
h2,w2=image2.shape #返回高和宽
image4=image2.copy()
b = [0 for z in range(0, w2)]  #b = [0,0,0,0,0,0,0,0,0,0,...,0,0]初始化一个长度为w的数组，用于记录每一列的黑点个数
#记录每一列的波峰
for j in range(0,w2): #遍历一列
 for i in range(0,h2):  #遍历一行
  if  image4[i,j]==0:  #如果该点为黑点
b[j]+=1  #该列的计数器加一，最后统计出每一列的黑点个数
image4[i,j]=255  #记录完后将其变为白色，相当于擦去原图黑色部分

for j in range(0,w2):
 for i in range((h2-b[j]),h2):  #从该列应该变黑的最顶部的点开始向最底部涂黑
  image4[i,j]=0#涂黑

plt.imshow(image4,cmap=plt.gray())
plt.show()
cv2.imshow('image4',image4)
#分割字符
Position = []
start = 0
a_Start = []
a_End = []
#根据水平投影获取垂直分割位置
for i in range(len(a)):
 if a[i] > 0 and start ==0:
  a_Start.append(i)
  start = 1
 if a[i] <= 0 and start == 1:
  a_End.append(i)
  start = 0
#分割行，分割之后再进行列分割并保存分割位置
for i in range(len(a_Start)):
 #获取行图像
 cropImg = image2[a_Start[i]:a_End[i], 0:w1]
 #对行图像进行垂直投影
 bstart = 0
 bend = 0
 b_Start = 0
 b_End = 0
 for j in range(len(b)):
  if b[j] > 0 and bstart ==0:
b_Start =j
bstart = 1
bend=0
  if b[j] <= 0 and bstart == 1:
b_End =j
bstart = 0
bend=1
  if bend == 1:
Position.append([b_Start,a_Start[i],b_End,a_End[i]])
bend =0
image2 = cv2.cvtColor(image2, cv2.COLOR_BGR2RGB)#将灰度图转为RGB彩图

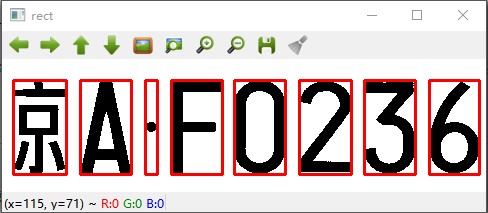

#根据确定的位置分割字符
for m in range(len(Position)):
 cv2.rectangle(image2, (Position[m][0],Position[m][1]), (Position[m][2],Position[m][3]), (0, 0, 255), 2)#第一个参数是原图；第二个参数是矩阵的左上点坐标；第三个参数是矩阵的右下点坐标；第四个参数是画线对应的rgb颜色；第五个参数是所画的线的宽度
cv2.imshow('rect',image2)
cv2.waitKey(0)
